C.9.1. Annotating raw data

Although sections 0 to 3 of a Substance dataset are technically handled as one record in IUCLID (see chapter D.4.6.1 Differences between sections 0 - 3 and sections 4 - 13), individual annotations can be created for each subsection. The following hands-on example demonstrates how to manage an annotation record for an Endpoint study record. The same principles apply for annotating any other IUCLID element, except that the Annotation template for Endpoint study records provides additional endpoint-related annotation fields.

Step-by-step guide

To add an annotation related to the sample Endpoint study record

  1. Find the record "Dorgerloh (1992)/key" in the section tree and double-click it to open it.

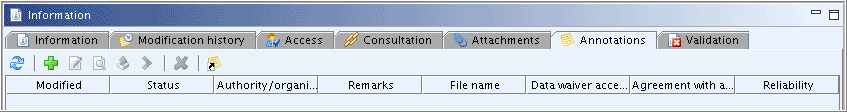

  2. In the Information window, click the Annotations tab to access this feature.

  3. On the Annotations toolbar, click the Add button .

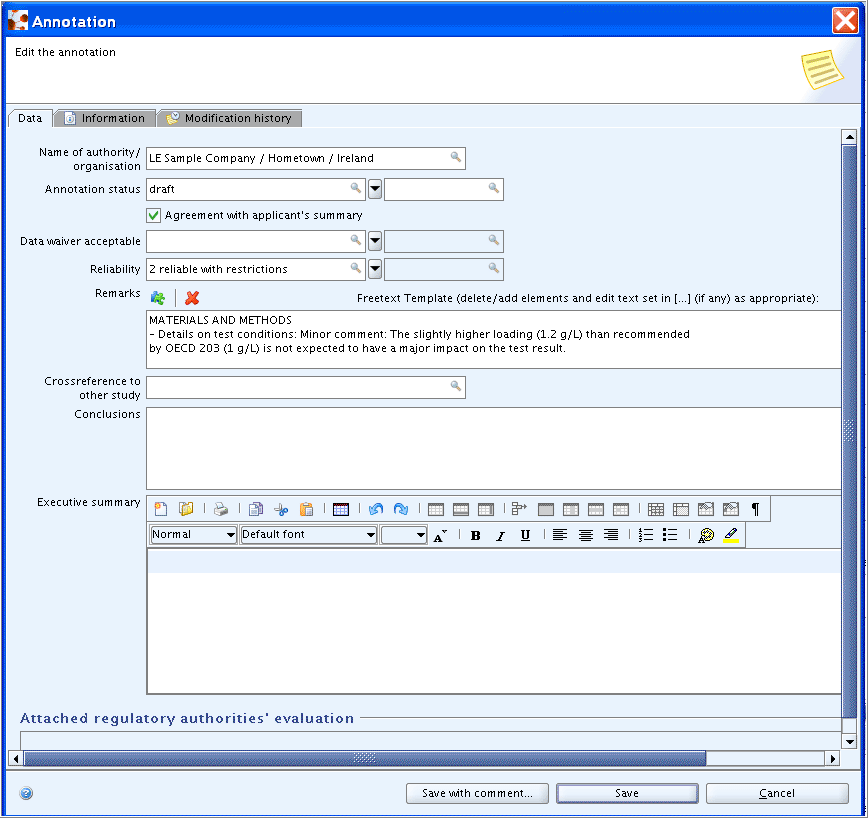

  4. In the Annotation template appearing, complete the appropriate fields, as shown in the screenshot below. In the fields Conclusions and Executive summary, the submitter's proposal may be adopted or revised as appropriate.

  5. Click the Save or Save with comment button if you wish to add any comment, which will appear in the modification history only.

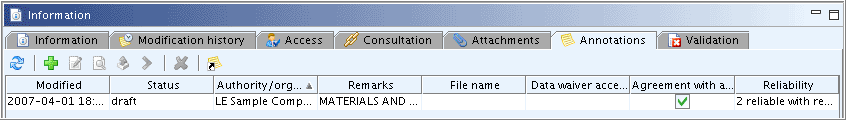

After clicking the Save button, the annotation record is displayed in table-view as follows:
